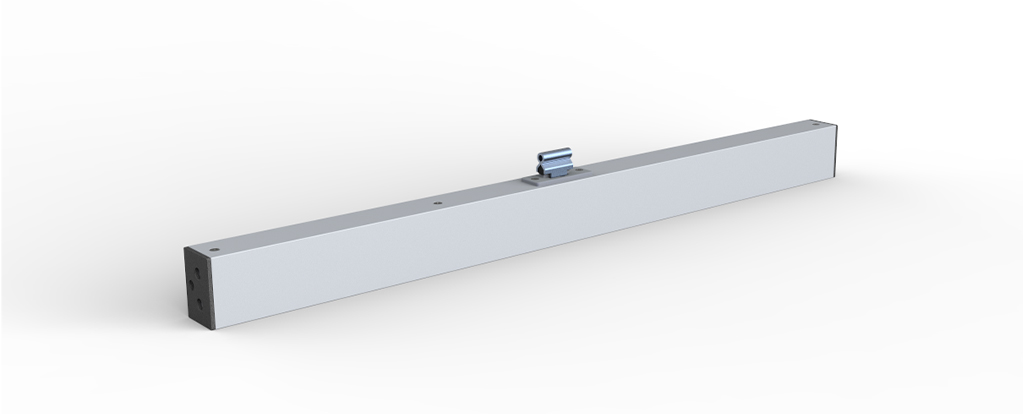

250N Chain Actuator

Details:


Description

With a slim profile, this product is designed to use in the small windows or even the conceal installation. Very quiet operation makes it ideal for day to day ventilation. It is extensively used in natural ventilation or light weight roof-light.

Features

  • Compact and small housing for use in small windows.

  • Corrosion resistance.

  • Design to meet EN 12101-2 annex G.

  • Meet EN12101-2 annex C cycling test for 10,000 cycles.

  • Options to have soft opening, water seal relief and finger protection.

  • Intelligent version available for the network control.



Technical

Voltage:

24 Vdc +/- 15%

Finishes:

 Powder coated RAL 9006

Stroke:

100 - 800 mm (above 400mm pull only)

Cable:

1 meter silicon cable

Push/Pull forces:

250N/300N

Ingress Protection:

 IP 32

Clamping forces:

>3,000N (based on manufacturers bracket)

Endurance:

10,000 cycles on    30% duty cycle

Current at nominal load:

0.7 A

Weight :

1.2 kg (350mm stroke)

No-load current:

0.1A

Synchronization:

External or Internal (optional)

Speed:

5-6mm/s



Housing:

Extruded Aluminum
