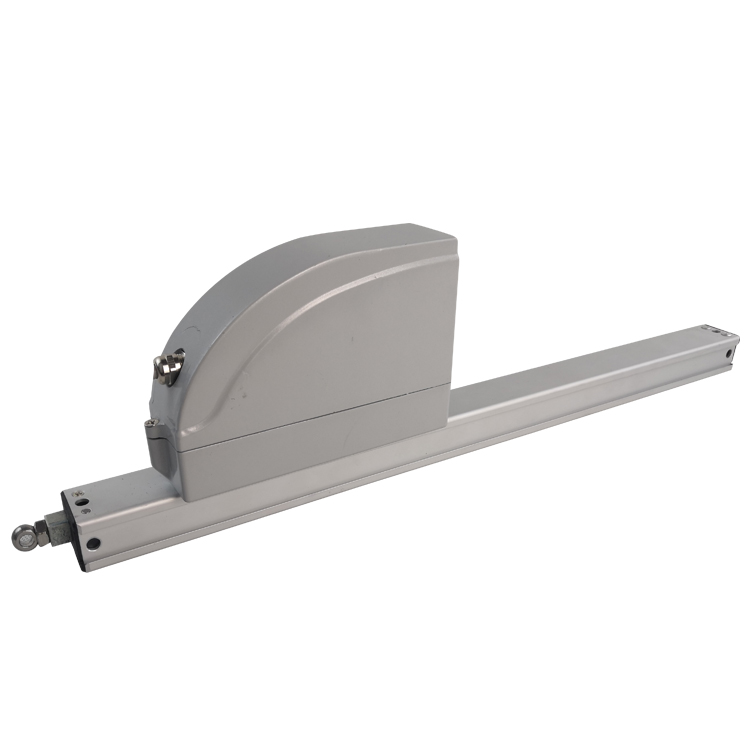

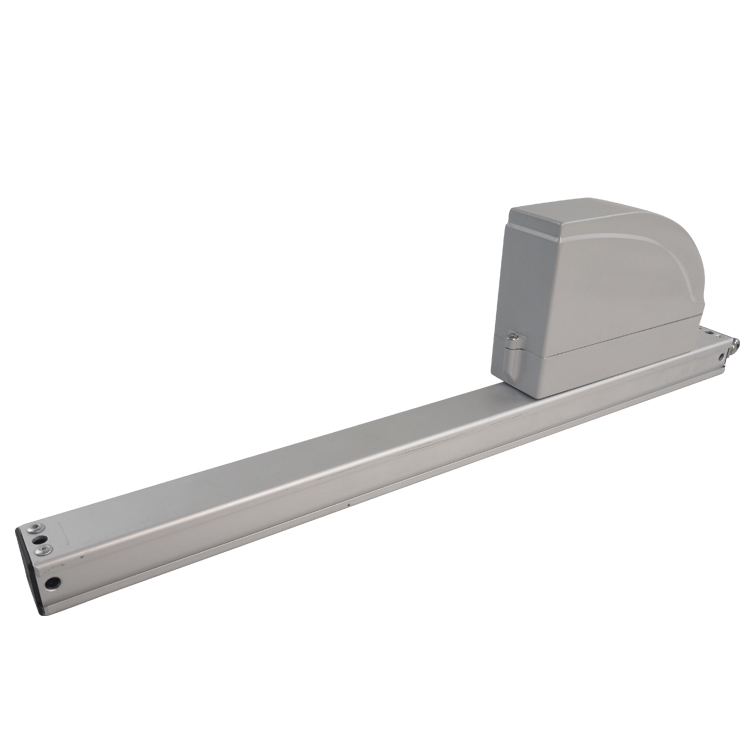

1600N Twin Master Rack Actuator

Details:


Description

This rack and pinion actuator is a low-cost solution for the window automation for the roof lights, louver, and heavy windows. The master/master configuration economically provide two catches on one ventilator as the synchronization is done by mechanically linked rod to bring 2 motors the same speed.

Features

  • Affordable window automation solution for roof light and slope vents.

  • Corrosion resistance.

  • Meets EN 12101-2 annex G.

  • Meets EN12101-2 annex C cycling test for 10,000 cycles.

  • Choice of plastic and metal housing.

Technical

 Voltage:

 24 Vdc +/- 15%

Finishes:

Silver/RAL 9006

Stroke:

100-1,000mm

Cable:

1 meter silicon cable

Push/Pull forces:

1600N

Ingress Protection:

 IP 55

Clamping forces:

3000N  (based on manufacturers bracket)

Endurance:

10,000 cycles on 30% duty cycle

Current at nominal load:

1.5A

Weight :

 2.2 kg (600mm)

No-load current:

0.2A

Synchronization:

mechanically by connecting rod

Speed:

8mm/s

Confirm To:

EN12101-2 (annex G)

Housing:

Plastic/Aluminum
