Description

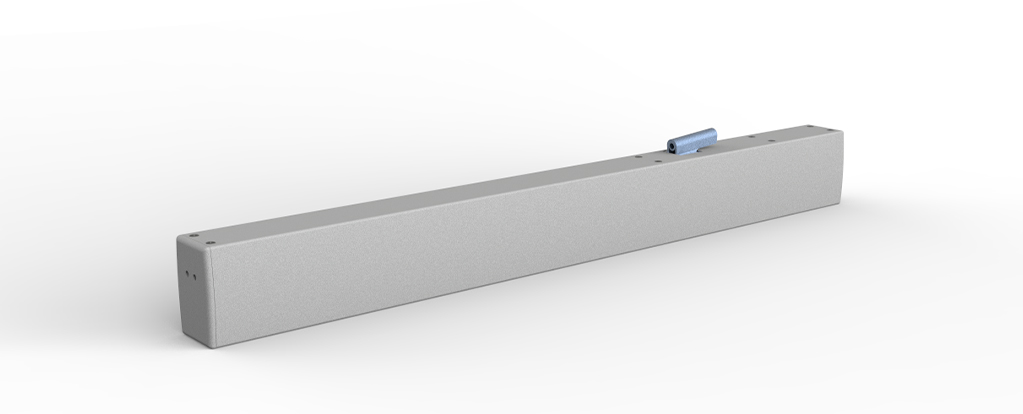

This product is designed to fulfill the need to drive big roof and slope ventilators with good aesthetics. It is the better alternative to replace the linear actuators to automate heavy vents. The special double layer chain blade provides a sufficient force to withstand 1500N compression force up to 1100mm stroke.
Features
Strong and robust chain construction to open/ close heavy vents.
Corrosion resistance housing.
Meets B300 (300°C/30 Mins) EN 12101-2 annex G.
Meet EN12101-2 annex C cycling test for 10,000cycles.
Micro-processor based control delivers constant speed, soft opening, water seal relief and finger protection to enhance users safety and reduce stress to the ventilators.
High speed opening to 1,100mm in 60 seconds
Technical
Voltage： | 24 Vdc +/- 15% | Finishes: | Powder coated RAL 9006 |
Stroke： | 100-1500mm (above 1100mm pull only) | Cable: | 1 meter silicon cable |
Push/Pull forces： | 1500N | Ingress Protection: | IP 32 |
Clamping forces： | 3000-5000N*special version (based on manufacturers bracket) | Endurance: | 10,000 cycles on 30% duty cycle |
Current at nominal load: | 4-5.5A (high speed version) | Weight : | 10 kg (500mm stroke) |
No-load current： | 0.5A | Synchronization: | Intelligent version |
Speed： | max 18mm/s | Confirm To: | EN12101-part 2 annex C,G |
Housing： | Extruded Aluminum |
