Description

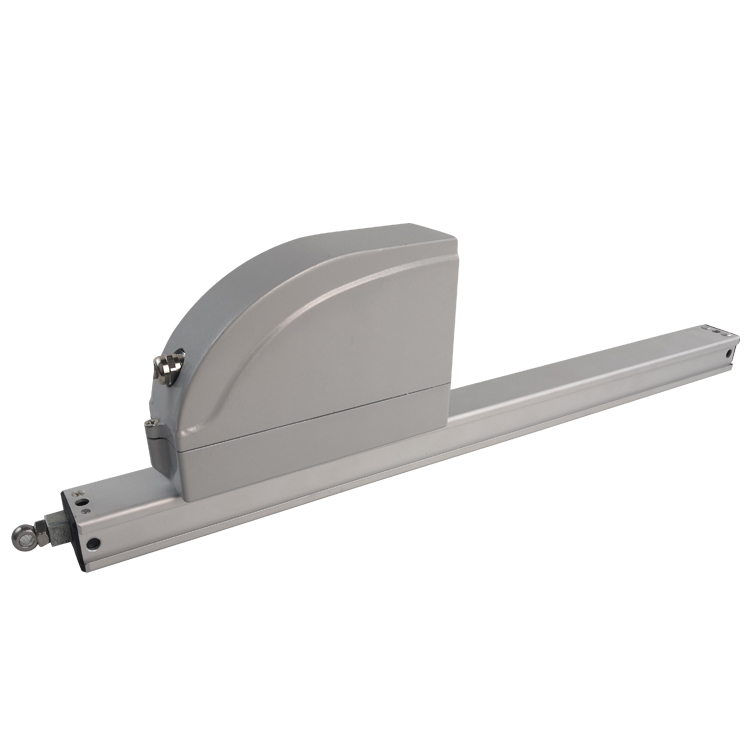

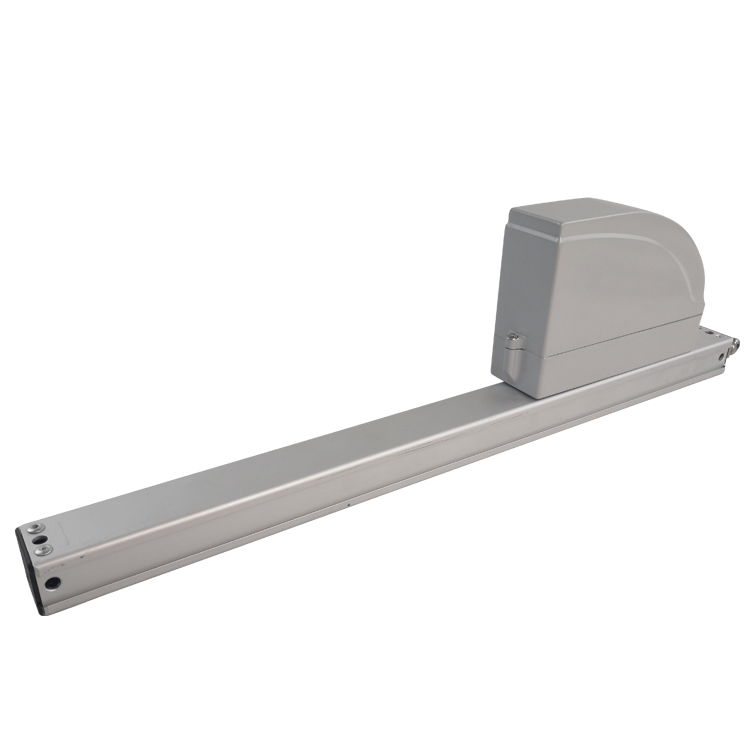

This rack and pinion actuator is a low-cost solution for the window automation for the roof lights, louver, and heavy windows. The master/slave configuration can economically provide two catches on one ventilator as the synchronization is done by mechanically linked rod to bring 2 motors the same speed.
Features
Affordable window automation solution for roof light and slope vents.
Corrosion resistance.
Meets EN 12101-2 annex G.
Meets EN12101-2 annex C cycling test for 10,000 cycles.
Choice of master/slave configuration for 2 catches application
Choice of plastic and metal housing.
Technical
Voltage： | 24 Vdc +/- 15% | Finishes: | Silver/RAL9006 |
Stroke： | 50-1,000mm | Cable: | 1 meter silicon cable |
Push/Pull forces： | 800N | Ingress Protection: | IP 55 |
Clamping forces： | 1500N (based on manufacturers bracket) | Endurance: | 10,000 cycles on 30% duty cycle |
Current at nominal load: | Single/Master slave 0.8-1.2A | Weight : | 2 kg (1000mm) |
No-load current： | 0.2A/0.4A | Synchronization: | mechanically by connecting rod |
Speed： | 5-8mm/s | Confirm To: | EN 12101-2 (Annex G) |
Housing： | Plastic/Aluminum |
